Home-Made Oil Injector


Home made oil injector for steam oil going into the steam line..  1.6 rpm gear dc motor.   Homemad Oil Injector

(Note: Click on a picture to see a larger view and then use your browser to enlarge it further.)

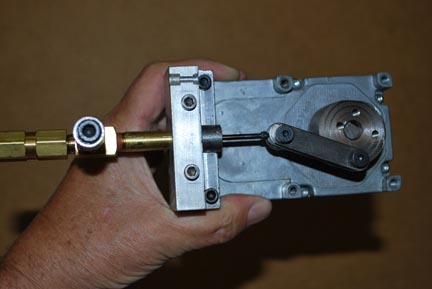

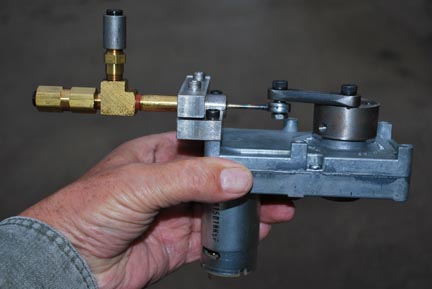

Homemad Oil Injector   Overall view showing the existing motor and gear box and cast housing with the eccentric and oil piston on top.

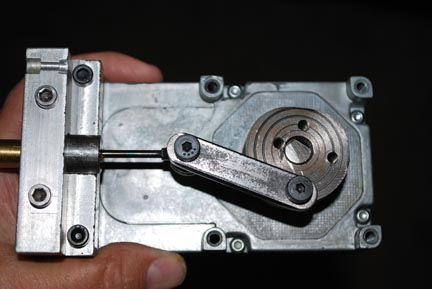

View of the drive eccentric showing the four possible drive holes for different strokes.   Homemad Oil Injector
