Steam Troll Prototype

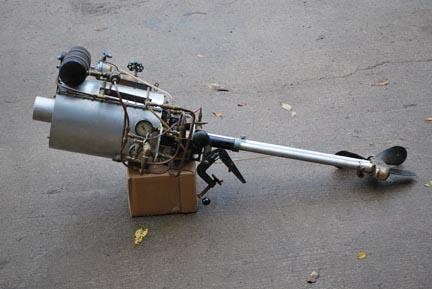

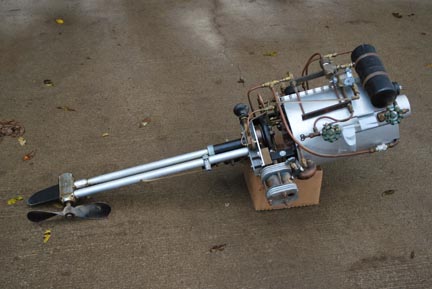

Steamtroll prototype designed and made by Bill Blake of Canandaigua, New York.  This engine is on display at the Kimmel steam shop.  Bill still has the much more stylish Beta version of this engine.  It is more or less a Stanley type of burner, engine, and boiler.  It burns butane and is designed for .4 horsepower and to replace an electric battery powered trolling motor   Steamtroll prototype designed and made by Bill Blake
with the same quiet operation and much more range.  Production was planned at the time of design but worries about state laws stopped business development.

(Note: Click on a picture to see a larger view and then use your browser to enlarge it further.)

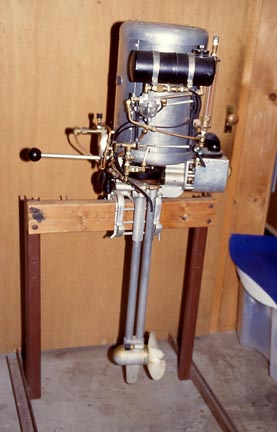

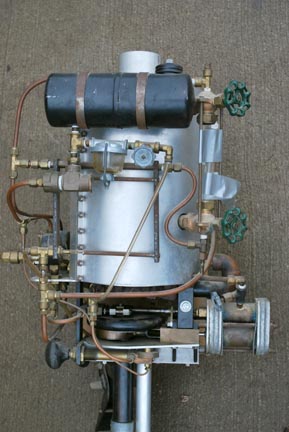

Steamtroll prototype designed and made by Bill Blake   Steamtroll prototype designed and made by Bill Blake

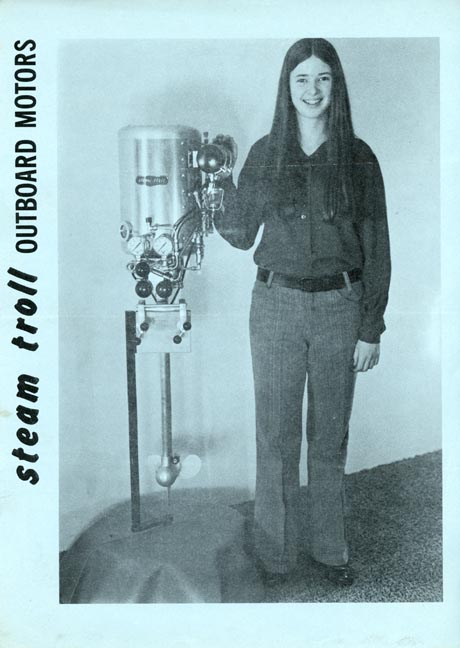

Steam Troll prototype by Bill Blake

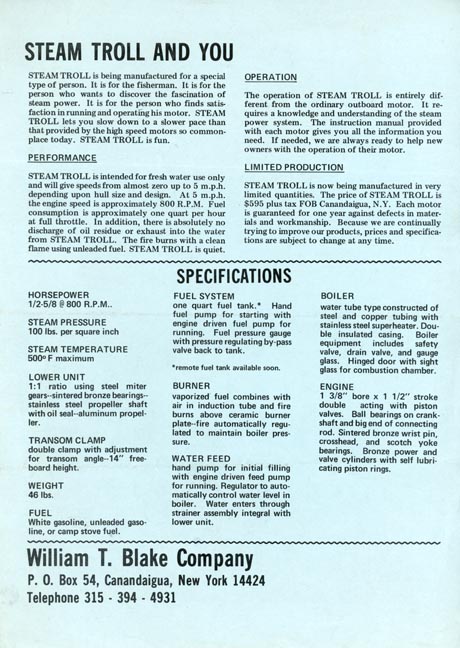

Steam Troll prototype by Bill Blake specifications

Steam Troll prototype by Bill Blake specifications
