Thorne Multiple Boiler

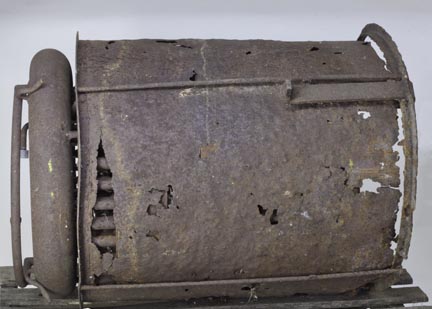

This is what a Thorne Multiple boiler looks like when left out in the rain for twenty years.  A good whole brochure for this boiler can be seen on Don Hoke’s Virtual Steam Museum website.  It was made in Chicago in the 1920’s as a replacement for the Stanley boiler having the same dimensions and the same surface area for heat exchange.   Thorne Multiple Boiler

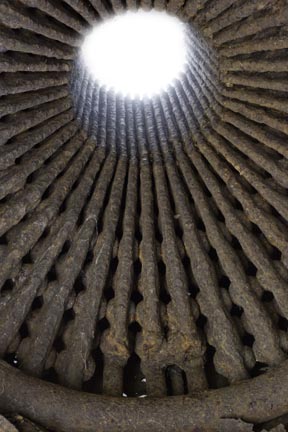

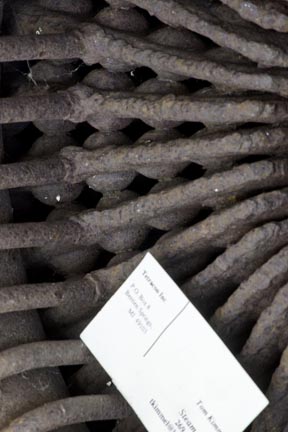

  It weighed 200 pounds more.  There was a lot of welding in this construction and many cast parts.

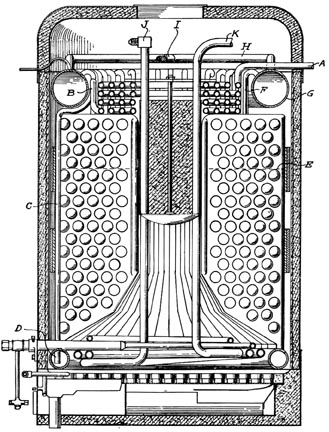

Diagram from the Thorne Multiple Boiler Brochure.
Thorne Multiple Boiler   Thorne Multiple diagram

Thorne Multiple Boiler

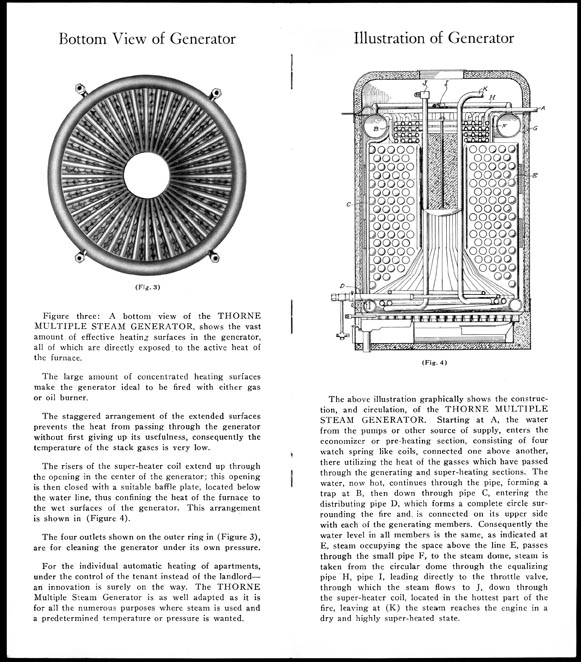

The Thorne Multiple Brochure pages from the Steam Automobile Bulletin, Vol 24 No. 4


  Thorne Multiple brochure
