Williams Brothers (Flat-4)
Model 1610 Engine





    Williams Brother's Model 1610 steam engine, steam engine


Note: Click on a picture to see a larger view and then use your browser to enlarge it further.)

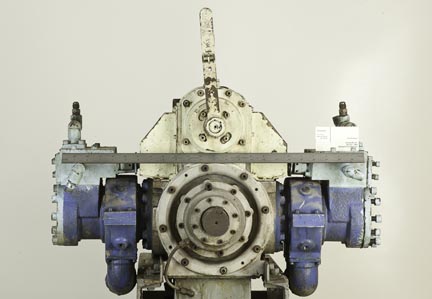

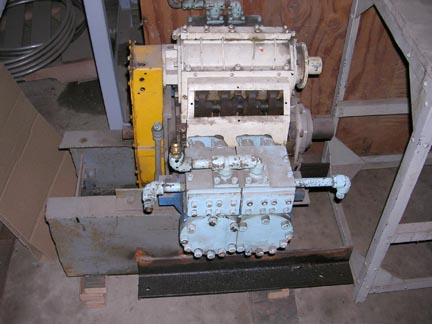

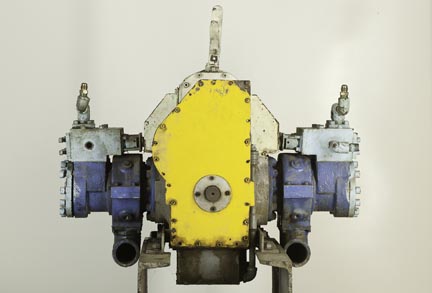

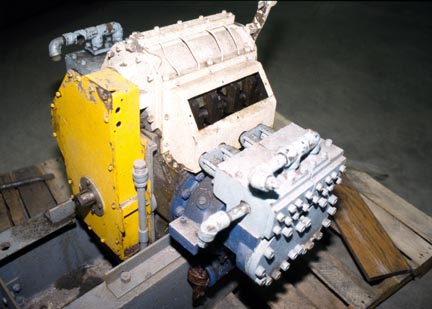

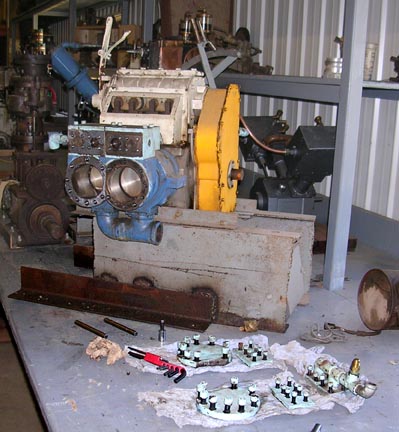

Williams Brother's Model 1610 steam engine, steam engineThis is one of the Williams Brothers early steam engine designs from 1946. This was designated Model 1610 and was four cylinder opposed 3 ½ x 3 ¾”. It is a uniflow with poppet valves. Of interest is the means for changing the intake valve timing. Williams Brother's Model 1610 steam engine, steam engineIt appears to be the same design as used on the Ford V-8 conversion, also made in 1946, Model 1648. This was a high speed engine.

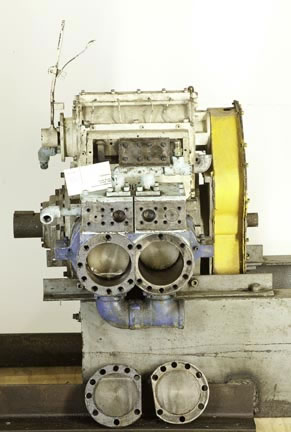

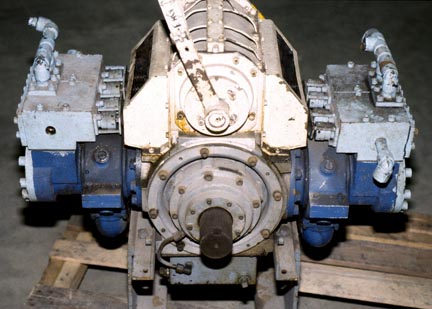

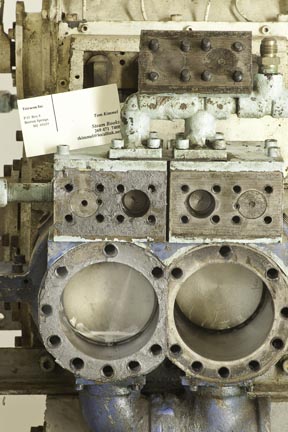

Williams Brothers Model1610 Steam EngineThe exhaust valves are poppet valves.  The intake valves are cam operated piston valves with very clever multi-port admission ports.  This allows the piston to move less than a quarter of an inch for full opening to closing.

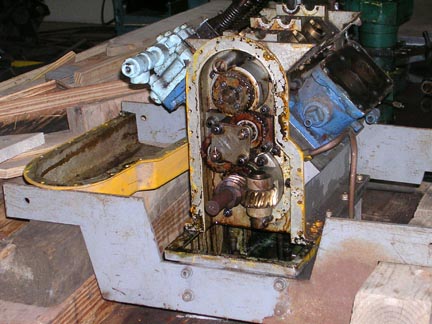

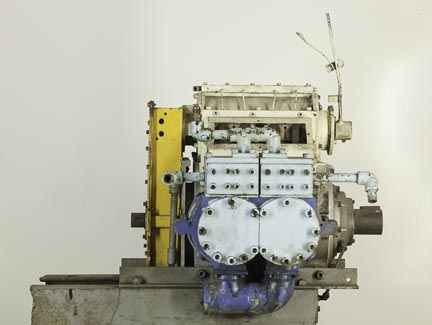

It appears that the intake valves are cam operated piston valves.  The auxiliary exhaust valves are very small poppet valves.




Williams Brothers Model1610 Steam Engine   Williams Model 1610

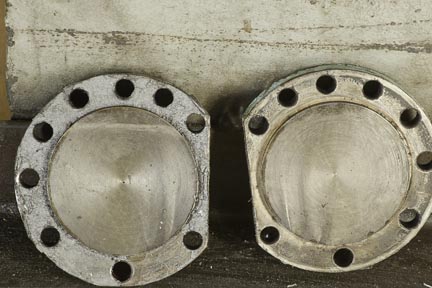

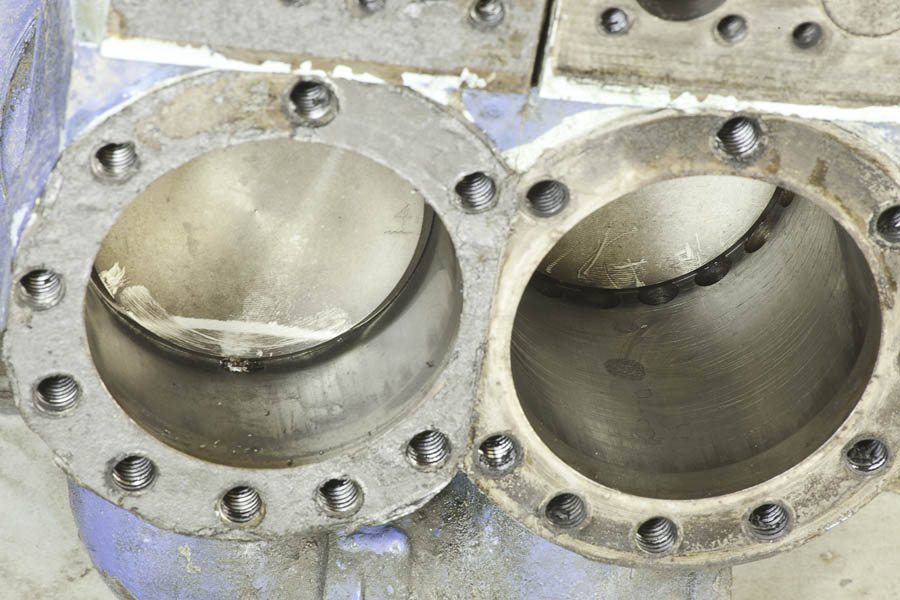

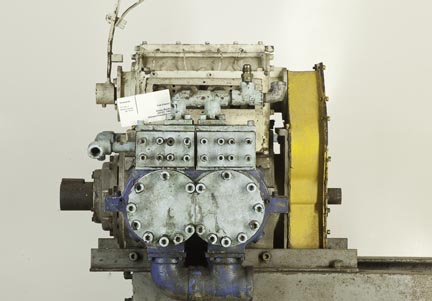

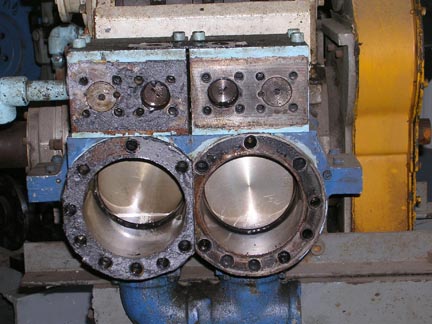

This engine is a uniflow with the exhaust ports being round holes drilled into the cylinder all the way around.

Williams Brothers Model1610 Steam Engine   Williams Brothers Model1610 Steam Engine

Photography by Derek Peters


Williams Brothers Model1610 Steam Engine   Williams Brothers Model1610 Steam Engine

Williams Brothers Model1610 Steam Engine   Williams Brothers Model1610 Steam Engine

Williams Brothers Model1610 Steam Engine
